Sideboards

PHIL Sideboards are designed to the specific height requirements of the end user. Traditonally, sideboards range in size from six inches to 36 inches, but can be custom made to be larger depending on the situation.

Installation of sideboards is as easy as fitting them over the existing body sides and positioning them as close to the front slope of the body as possible. Trimming of the sideboards to achieve a snug fit against the front slope is required. Once this is done, the sideboards need to be welded along their perimeter tying them into the body side and front slope.

  • 14745-at-sb-cat745-1.jpg


  • 14745-at-sb-cat745-2.jpg


  • 14745-at-sb-cat745-3.jpg


  • 14745-at-sb-cat745-4.jpg

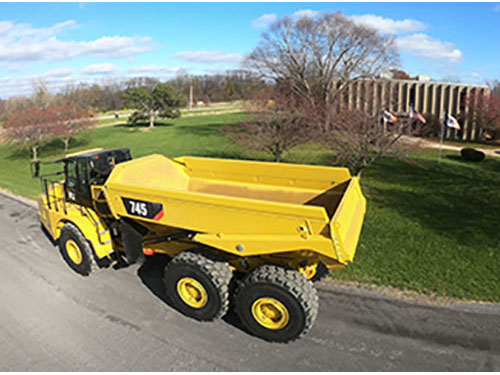

  • tailgate_sideboards_1.jpg


  • tailgate_sideboards_2.jpg


  • tailgate_sideboards_3.jpg


  • tailgate_sideboards_4.jpg


  • tailgate_sideboards_5.jpg


  • tailgate_sideboards_6.jpg


Tailgates - Sideboards

Engineered with internal structural gusseting to provide a long life

Designed in a "U" pattern to fits over the original body side

The Simplest Method to increase Volume on an existing haul truck

Built of Grade 80 steel (on trucks from 20 to 150 tons in size) and 450 Brinell on trucks 150+ tons in size

Optimize Efficiencies when working in conjunction with an Autogate® Tailgate built up for Sideboards

Finished Back / Cut-To-Fit Front for Perfect Fitup with Front Slope

Innovation

PHIL Sideboards are designed to the specific height requirements of the end user. Traditonally, sideboards range in size from six inches to 36 inches, but can be custom made to be larger depending on the situation.

Installation of sideboards is as easy as fitting them over the existing body sides and positioning them as close to the front slope of the body as possible. Trimming of the sideboards to achieve a snug fit against the front slope is required. Once this is done, the sideboards need to be welded along their perimeter tying them into the body side and front slope.

Sideboard Capacity Chart
Request a quoteSideboard Spec SheetsSideboard Installation

BUMP YOUR PAYLOAD

JOSH SWANK ARTICLE
Aggregates Manager Magazine
February 2015

Learn how adding a tailgate to your haul truck can boost

DOWNLOAD ARTICLE
